Treebyss CA-10FL

Best Value Fuel Cell Tester

SKU CA-10FL

$120.00

Downloads

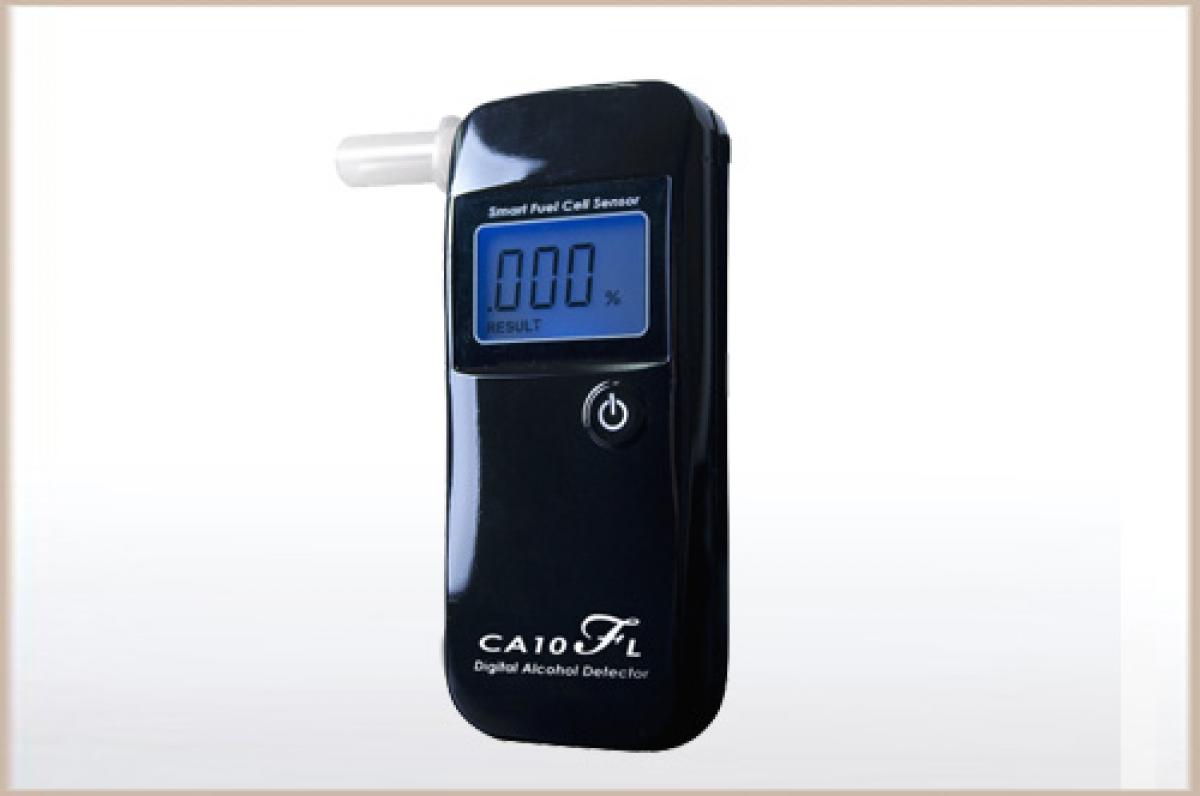

Treebyss CA-10FL Fuel Cell Breath Tester

BEST VALUE FUEL CELL DEVICE. WON'T LAST LONG AT THIS PRICE

Police quality personal sensor!!!

  • Fuel Cell Sensor (Own developed high selective sensor)
  • Fast warm-up, respond and recovery
  • Law enforcement grade accuracy (3rd decimal place display)
  • Easy Calibration &low cost maintenance
  • Intelligent functions
      - Accurate sampling system
      - Self-diagnosis system(Flow, Calibration, Temperature, Low battery)
      - Auto power saving
  • Fuel cell sensor alcohol tester is the gold standard of hand held alcohol testers for both personal and professional use. The breath is directed into a fuel cell sensor with dual platinum electrodes where alcohol oxidized and generates electrical current. By precisely measuring this current, alcohol tester gives very accurate measure. The fuel cell sensor is specific only for alcohol and does not respond to acetone, ketone or other substances which can be found in human breath. The CA10FL gives high accuracy and wide detection range up to 4.00‰. The tester is equipped with an advance temperature function to help you operate it in an optimal temperature range.

    - Benefits of Fuel Cell Sensors

    Fuel Cell sensors are the latest advancements in digital alcohol testing. Designed to be more accurate as semi-conductor sensors, fuel cells are the gold standard when testing BAC. An increase in durability leads the CA10FL to have an extended life before needing calibration. A less frequent service and maintenance schedule, lowers the overall cost of ownership. In addition, the CA10FL will not detect a false positive for individuals on a low carb diet or diabetic.

    - Alcohol Test

    Easy to use – simply insert mouthpiece and begin testing immediately. Push the ON/OFF power switch. The tester will show "ON" together with a sound and starts countdown which will be taken about 15~35 seconds. This warm-up process prepare the sensor and circuit for testing. After display will show "BLO" and you will hear beep sound. Blow steadily into the mouthpiece until you will hear beep sound again. After completion of analysis for about 3~22 seconds, the test result will be displayed by 3 digits for 20 seconds along with beep sound. If data will be over 0.500 ‰ , the display will show the result and "Warn" signal (Red led) will be displayed with alarm sound. Finally the unit will show "OFF" and turn off automatically with a sound.










    Part #: CA-10FL Colour: Black


    Downloads


    More Information



    TECHNICAL SPECIFICATION

    Sensor

    SMART Fuel Cell Sensor

    Accuracy

    ≤±0.005% BAC at 0.050% BAC

    Detection range

    0.000 ~ 0.400% BAC / 0.000 ~ 2.000mg/l BrAC

    Response time

     3 ~ 22 seconds

    Warm up time

    15 ~ 35 seconds

    Working temp.

    +5°C ~ +40°C

    Storage temp.

     0°C ~ +50°C

    Calibration

    Every 6 months or after 500 tests

    Display

    3 digit FND Display

    Power supply

    Two 1.5V "AAA"size Alkaline battery

    Dimension

    114 x 47 x 24mm

    Product weight

    61.5g (84g battery included)

    Packing

    Tester, 2ea of 1.5V alkaline, 3 pcs of mouthpieces, User’s manual, Carring pouch

    Warranty

    1 year limited warranty


     ∗Specifications are subject to be changed without prior notice for functional improvements.
