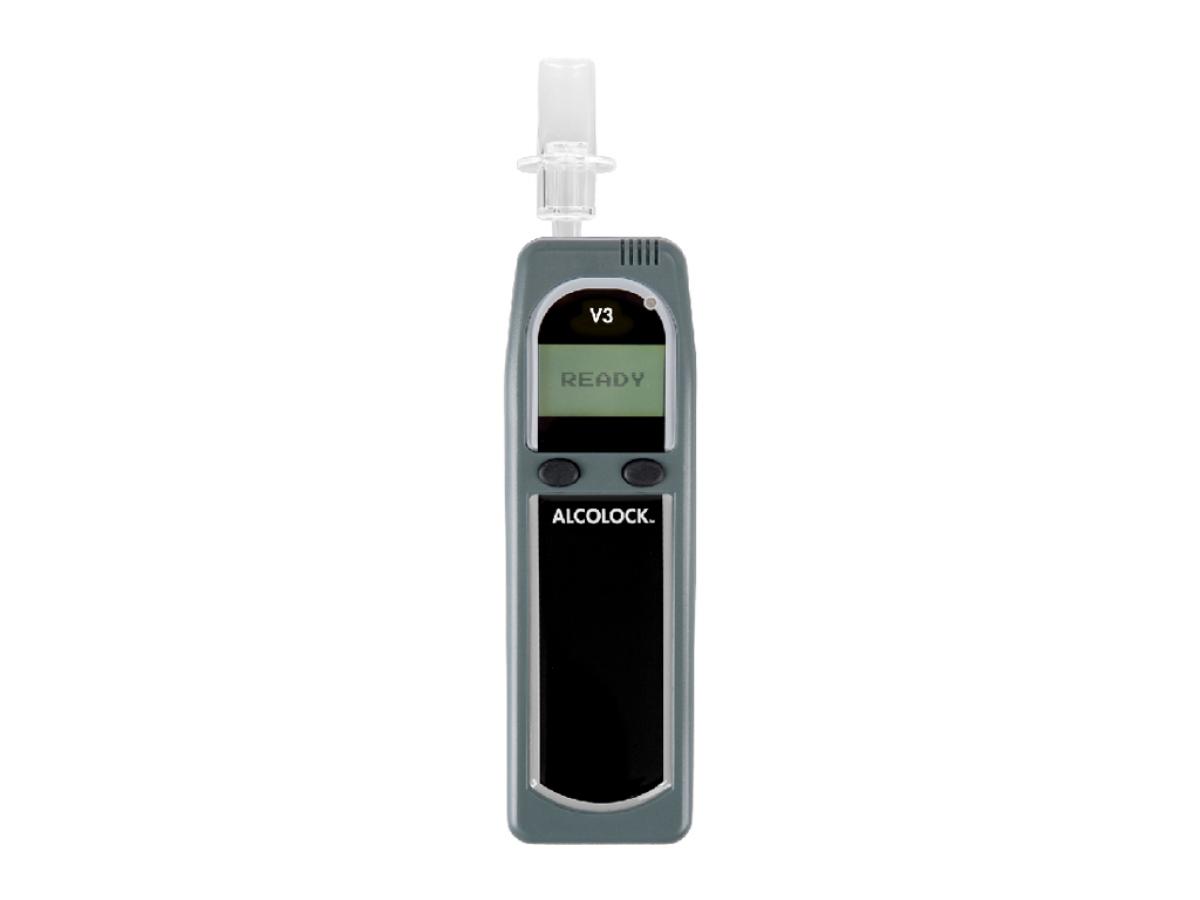

Alcolock V3

Private and Commercial applications

SKU 978-000103-1

$2,851.84

Downloads
ALCOLOCK V3 measures the breath alcohol concentration (BrAC) of a driver and prevents the vehicle from starting if the driver’s BrAC is over a predetermined limit. It’s rugged construction ensures reliability in all environments such as trucks, ships and heavy machinery.

  • Quality Engineering
  • Easy Breath Sampling
  • Emergency Override
  • Programmable to suit your Business

Protect your vehicles from drunk drivers

Manufactured to:

AS-3547 - 1997 Breath Alcohol Testing Devices for Personal Use

Quality engineering

Work environments are demanding.

ALCOLOCK V3 alcohol interlocks are engineered to withstand the vibration, dirt, dust, humidity and extreme temperatures typically found in commercial applications. They can be installed in any motorized equipment, including trucks, ships, trains and heavy machinery.

Simple breath sampling

Drivers use the handset to provide a breath sample. Within seconds the ALCOLOCK V3 device analyses it for breath alcohol content (BrAC) and displays instructions to the driver. Sensors help ensure mechanical devices such as air pumps cannot be used to circumvent the system.

 Programmable to suit your business

Drivers may be tested at the beginning of their shift, or at intervals throughout the day, by programming the ALCOLOCK V3 system to meet company safety policy requirements. Proprietary software allows reporting of logged events such as breath test results, times, dates and more.



SKU #: 978-000103-1


Downloads


More Information

SPECIFICATIONS

Handset Size: 150 mm x 48 mm x 50 mm
Handset Weight: 220 grams
Sensor: Electrochemical (fuel cell)
Specificity: Alcohol only, no response to ketones or hydrocarbon
Operating Temperature: -40°C to +85°C
Breath Sample: 5 second moderate and continuous breath sample
Analysis Time: 5 to 25 seconds
Recycle (Recovery) Time: 10 to 30 seconds
BAC Readout Format: Tri-colour LED (pass, warn, fail)
Range of Measurement: 0 to 1.00 mg/L
Accuracy: ± 0.02@ 0.20 mg/L
Display: Graphic LCD
Memory: 100,000 events log
Operating Voltage: 12 volt or 24 volt DC
Mouthpiece: Round (model: 95-000140)
Calibration: Alcohol/water simulator or dry gas
